SA102 Geodetic GNSS Antenna
Model SA102 · Full-band geodetic antenna, TNC, IP67
SA102 is a full-band geodetic antenna for CORS stations, base stations, monitoring and machine guidance. It tracks every GNSS constellation plus L-Band, with a stable phase centre and a low-noise amplifier.
- LNA
- 36 ± 2 dB
- Connector
- TNC
- Protection
- IP67
- GPS, GLONASS, Galileo (E1/E5a/E5b/AltBOC), BeiDou, QZSS, SBAS, L-Band
- LNA gain 36 ± 2 dB
- RHCP, 50 Ω
- TNC female connector
- 5/8"-11 threaded mount
- IP67, 152 × 62.2 mm, 374 g
MOQ 1 unitVolume pricing available
1-year warrantyLifetime remote support
Ships in 3–7 daysExpress, air or sea
OEM & ODMLogo, colour, packaging
Overview
Mount it on a standard 5/8"-11 thread and connect with a TNC female port. The IP67 radome is designed for permanent outdoor installation; cables of several lengths are available.
Applications
- CORS reference stations
- RTK base stations
- Deformation monitoring
- Machine guidance
- Precision agriculture
Related
Specifications
| Signal tracking | GPS, BDS, GLONASS, Galileo, QZSS, SBAS, L-Band |
|---|---|
| Galileo | E1, E5a, E5b, AltBOC |
| LNA gain | 36 ± 2 dB |
| Polarisation | RHCP |
| Impedance | 50 Ω |
| Connector | TNC female |
| Mounting | 5/8" × 11 thread |
| Dimensions | 152 × 62.2 mm |
| Weight | 374 g |
| Ingress protection | IP67 |
| Colour | White & orange |
| Warranty | 1 year |
Need the full datasheet?
We send PDF datasheets, manuals and software details for each batch, together with your quotation.
Request datasheet and priceSpecifications are typical values and may change with product updates. Accuracy depends on satellite geometry, multipath, baseline length and correct set-up.
SA102 questions
Not answered here? Ask our engineers.
What are the payment and shipping terms for the SA102?
MOQ is one unit. We accept T/T and quote EXW, FOB Shanghai, CIF or DAP. Stock units usually ship in 3–7 working days by express, air or sea freight, with a one-year warranty.
Related products
View category
RTK receivers
E1 Lite GNSS Receiver
Compact, lightweight RTK receiver
- Channels
- 1408
- Radio
- 3–15 km
- Weight
- ≈ 870 g
RTK receivers
E1 Pro GNSS Receiver with Screen
RTK receiver with 1.1" colour status screen
- Screen
- 1.1" colour
- Fix
- < 5 s
- Radio
- 5–15 km
RTK receivers
L1 AR Visual Stakeout GNSS Receiver
RTK receiver with camera and AR stakeout
- Stakeout
- Camera AR
- Tilt
- 60° IMU
- Fix
- < 5 s
Learn more
Knowledge base
GNSS & RTK · 6 min read
GNSS vs GPS: what is the difference and why it matters for surveying
GNSS vs GPS comes down to scope. GPS is one satellite navigation system, operated by the United States. GNSS (global navigation satellite…
GNSS & RTK · 7 min read
GNSS antenna guide: L1/L2/L5 bands, geodetic vs smart antennas and RTK
A GNSS antenna receives the right-hand circularly polarised signals broadcast by GPS, GLONASS, Galileo and BeiDou satellites and passes them,…
GNSS & RTK · 6 min read

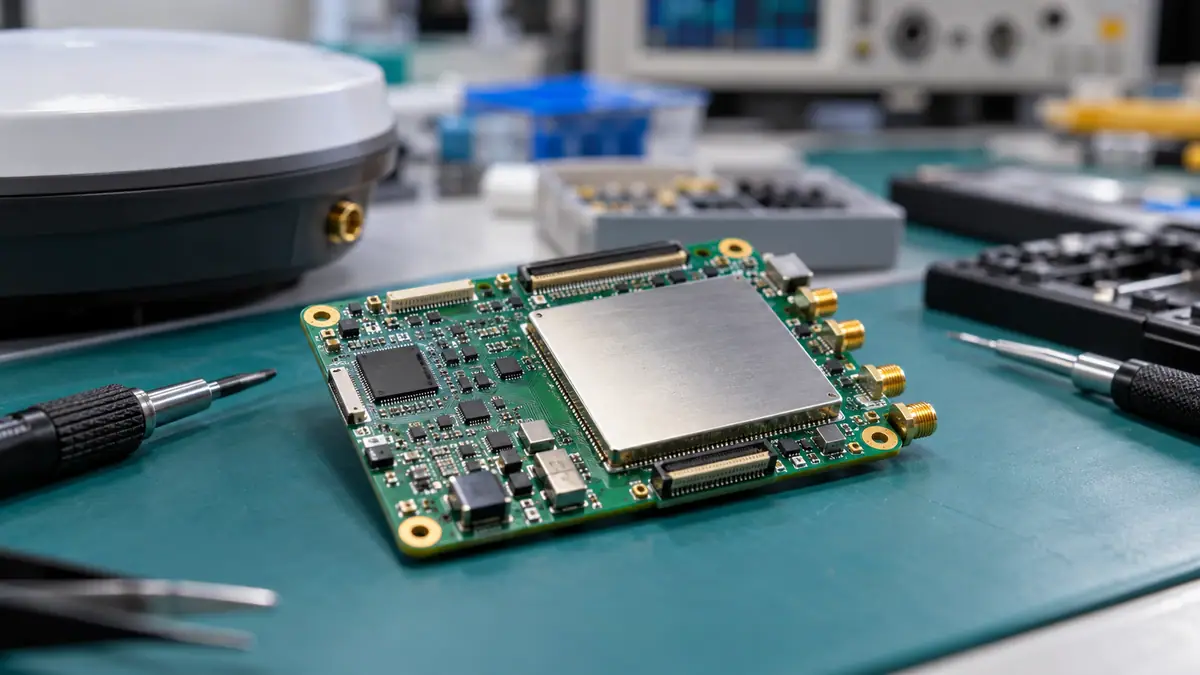

GNSS module integration: how to add RTK positioning to your product
